Factory Price Two Roll Rubber Mixing Mill PLC Controlled
Direct Factory Two Roll Rubber Mixing Mill
- Comprehensive machine structure including rollers, gearbox, electrical cabinet, transmission device, and main motor
- Versatile applications for mixing, warming, and sheeting rubber materials
- Alloy chilled cast iron rollers with hardened, wear-resistant surfaces
- Roller ball bearing bush support for smooth operation, energy efficiency, low noise, and extended lifespan
- Manual roll gap adjustment for simple operation
- Integrated overloading protection system to safeguard main components
- Single drive transmission with nylon pin coupling for overload protection
- Integral base design with closed transmission for safety and ease of use
- Emergency button and pulling rope safety devices
- PLC control cabinet compatible with local industrial voltage and frequency requirements

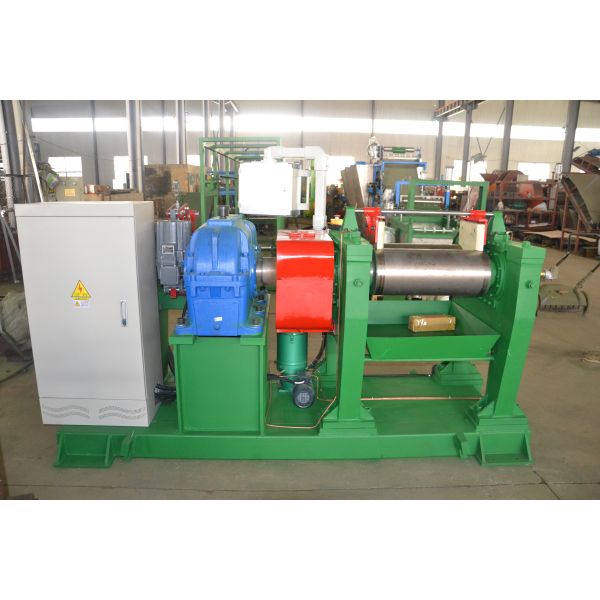

Product Reference Photos
Technical Specifications
| Model |
XK-230 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-560 |
XK-550B |
XK-660 |
| Working Diameter of rolls (mm) |
230 |
250 |
300 |
360 |
400 |
450 |
560/510 |
550 |
660 |
| Working Length of Rolls (mm) |
600 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
1500 |
2130 |
| Front Roll Surface Speed (m/min) |
10.21 |
14.1 |
15.1 |
16.25 |
18.65 |
24.26 |
27.72 |
27.94 |
28.6 |
| Friction Ratio |
1:1.19 |
1:1.17 |
1:1.25 |
1:1.25 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
1:1.09 |
| Max. nip (mm) |
7 |
8 |
10 |
10 |
10 |
15 |
15 |
15 |
15 |
| Capacity per Batch(kg) |
6-10 |
8-15 |
15-20 |
20-25 |
18-35 |
25-50 |
35-50 |
50-60 |
165 |
| Motor Power (kw) |
15 |
18.5 |
22 |
30 |
37 |
55 |
90 |
110 |
245 |
| Dimensions L (mm) |
2800 |
3400 |
3400 |
3780 |
4350 |
5200 |
5845 |
5870 |
7465 |
| Dimensions W (mm) |
1200 |
1500 |
1500 |
1850 |
1850 |
2380 |
2284 |
2475 |
3662 |
| Dimensions H (mm) |
1120 |
1500 |
1550 |
1750 |
1785 |
1840 |
1978 |
2045 |
2080 |
Packaging and Shipping
Equipment is painted before delivery and wrapped with stretch film to protect surface finish. Custom wooden packaging available. Key components including electronic control boxes are protected with shockproof materials and packed in wooden cases for secure transportation.
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is an established Chinese manufacturer founded in 2007 with over 10 years of experience in rubber machinery production. The company holds ISO 9001:2015, SGS, and CE certifications.
Our factory specializes in rubber kneaders, mixing mills, plate vulcanizing presses, multi-roll rubber calenders, rubber batch off coolers, waste tire recycling lines, reclaimed rubber production lines, conveyor belt production lines, and rubber seals extruding & vulcanizing lines.
Our machinery has been exported worldwide to markets including America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka, and many other countries and regions.
Customer Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress tracking with regular photo updates
- Complete documentation including packing lists, commercial invoices, and bills of lading
- Comprehensive technical support with foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee. Our machines incorporate world-renowned brand components to maintain reliable operation and extended service life.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas installation and technical support services. Installation typically takes 2-3 days for smaller machines and approximately 30 days for complete production lines. Customers are responsible for installation costs.
How can I trust you to deliver the right machine as I ordered?
We are committed to delivering exactly what we confirm in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established successful partnerships with numerous world-renowned rubber production manufacturers and welcome factory visits to demonstrate our capabilities.
How can we go to your side?
Our facility is located in Qingdao City, Shandong province, China, accessible via Qingdao Jiaodong International Airport. We provide airport pickup services for visiting customers.
